Description

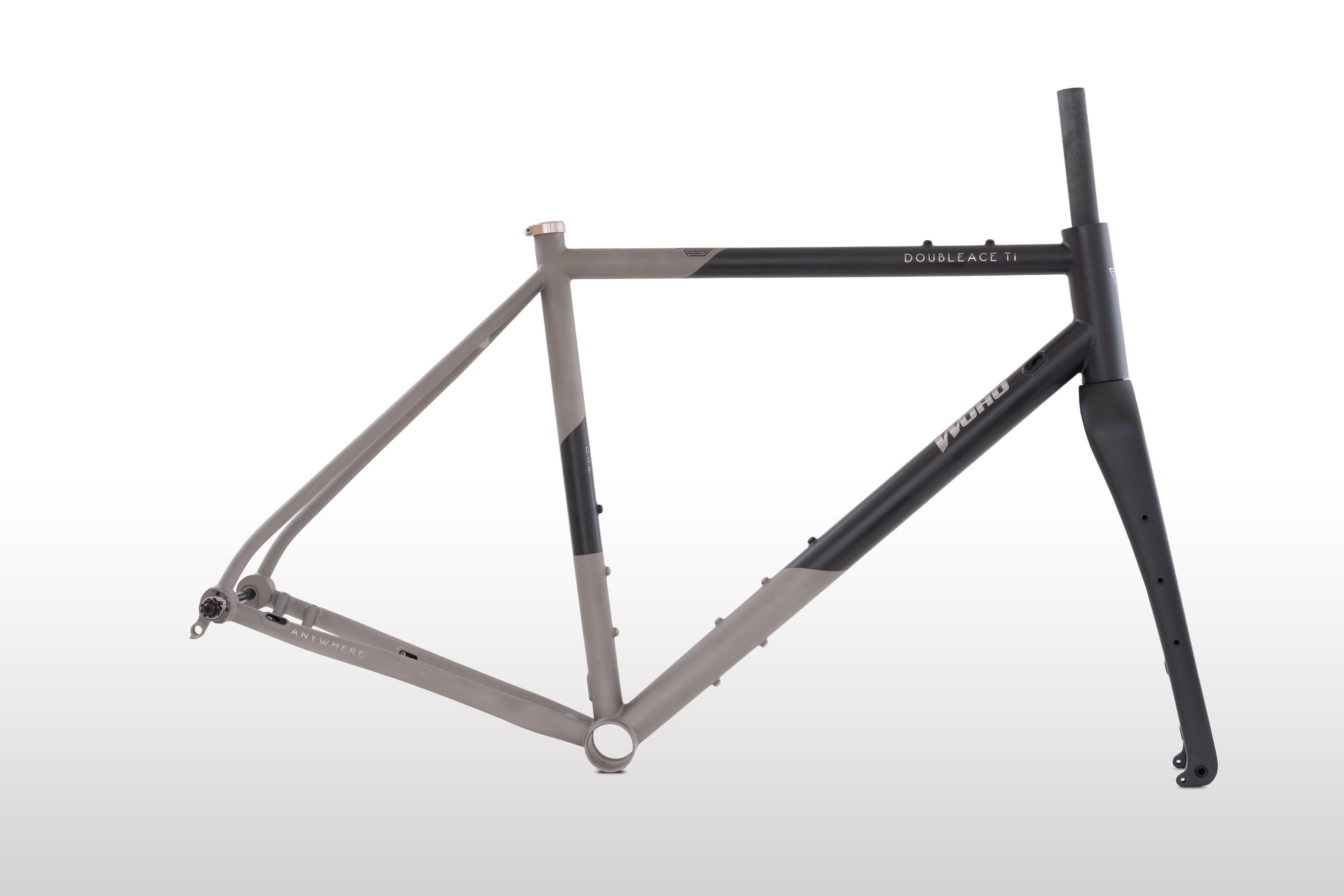

titanium gravel bike frameset Double Ace Titanium GRAVELTHE ULTIMATE TITANIUM GRAVEL FRAME SET! This contemporary race machine is uniquely designed for endurance and off road adventures. The DoubleAce is a reliable tool for multi surface cycling, and is equipped with bikepacking bags for extended treks. With agile handling on the pavement and remarkable speed on the road, you'll appreciate the perfect balance in this touring and bikepacking frame. FREE SHIPPING To Austria, Belgium, Bulgaria, Canada, China,
THE ULTIMATE TITANIUM GRAVEL FRAME-SET!
This contemporary race machine is uniquely designed for endurance and off-road adventures. The DoubleAce is a reliable tool for multi-surface cycling, and is equipped with bikepacking bags for extended treks. With agile handling on the pavement and remarkable speed on the road, you'll appreciate the perfect balance in this touring and bikepacking frame.
FREE SHIPPING To
Austria, Belgium, Bulgaria, Canada, China, Croatia, Denmark, Estonia, Finland, France, Germany, Greece, Hong Kong SAR, Hungary, Ireland, Italy, Japan, Latvia, Lithuania, Luxembourg, Macau SAR Administrative Region, Malaysia, Mexico, Netherlands, Philippines, Poland, Portugal, Romania, Singapore, Slovakia, Slovenia, South Korea, Spain, Sweden, Taiwan, Thailand, United Kingdom, United States
Enjoy free shipping on the second Frame-set in other regions.
3Al-2.5V Oversized Titanium alloy tubing
This frame was crafted from 3Al-2.5V Titanium alloy, commonly used in aerospace applications. Oversized tubing and innovative twisted oval down tube construction provides optimal power transmission and increased long-distance comfort.
Large diameter bottom bracket
DoubleAce Titanium GRAVEL's T47 BB standard provides a versatile blend of drivetrain components, boosting bottom bracket rigidity for higher power output and steadiness.
Semi-compact front triangle design
Features like a sloped, low top tube offer enhanced stability and responsiveness on rough trails, while keeping the front triangle lightweight and strong.
Stealth cable routing
A versatile, internal cable routing system gives you the ability to select from various drivetrain configurations. This design not only creates a neat aesthetic but also makes the frame easier to clean.
Size & Geo
Titanium Seat Post - Optional
UDH (Universal Derailleur Hanger)
Frame-set Features
Tubeset: Custom 3Al-2.5V oversized Titanium alloy tubing
Headset: WOOdman Headset(Included) ZS44 / 28.6 l EC44 / 40
Fork: WOHO Adventure carbon fork (tapered steerer tube 1-1/8” to 1.5”)
Finish: Cerakote Custom (Black Velvet + Sandblasting Raw Ti)
Brake Mount: 160mm Flat mount disc brake
Brake Routing: Internal (External available upon request)
Axle Spacing: F12x100TA - R12x142TA
Bottom Bracket: T47 68mm
Seatpost Diameter: 27.2mm
Titanium Seat Post - Optional
Seat Post Clamp: WOOdman 31.8mm (Included)
Front Derailleur Mount: Clamp on
Water Bottle Mount: Total Four - Down tube*2, Seat tube and top tube
Rear rack or Fender mounts : Optional
Tire Clearance: 700c x 40 or 650b x 47
Chainline: 1x max 44t (46t with SRAM wide-spec)
Derailleur Hanger: Universal Derailleur Hanger (UDH)
Sizing : 46 | 48 | 51 | 54 | 57 | 60
Lead Time - Made to Order: 6 weeks, Current lead time about 45 days.
Price $2,950 (Frame-set)
There is also an option for a complete bike.
Double Ace Titanium GRAVEL | Complete Bike Custom Cerakote G(Black Velvet/Sandblasting)
FREE SHIPPING To
Austria, Belgium, Bulgaria, Canada, China, Croatia, Denmark, Estonia, Finland, France, Germany, Greece, Hong Kong SAR, Hungary, Ireland, Italy, Japan, Latvia, Lithuania, Luxembourg, Macau SAR Administrative Region, Malaysia, Mexico, Netherlands, Philippines, Poland, Portugal, Romania, Singapore, Slovakia, Slovenia, South Korea, Spain, Sweden, Taiwan, Thailand, United Kingdom, United States
Enjoy free shipping on the second Frame-set in other regions.
More order detail please contact with [email protected]
Q&A
Q: Can I customize the frame geometry and paint color?
A: Yes! Feel free to provide your desired frame specifications and design ideas, and we will offer a custom quote accordingly.
Q: Can I choose the components I want for the complete bike?
A: Absolutely! Please provide the specifications and settings for the components you prefer, and we will prepare a custom parts list and quote based on your needs.
Q: What is the weight of the complete bike?
A: Depending on the size, the complete bike weighs around 9 to 10 kg.
Q: Can this frame be paired with other drivetrain systems?
A: Of course! We also offer frame sets and custom build services. Feel free to let us know your preferences, and we can help you achieve any setup or specifications you dream of!
